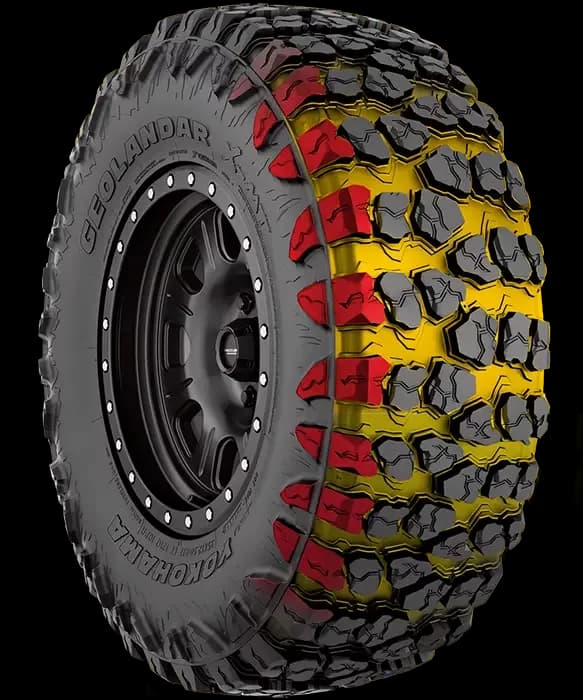

Ultimate Grip

The high void-to-lug ratio, along with deep side blocks provide game-changing traction on even the steepest climbs.

ULTIMATE GRIP

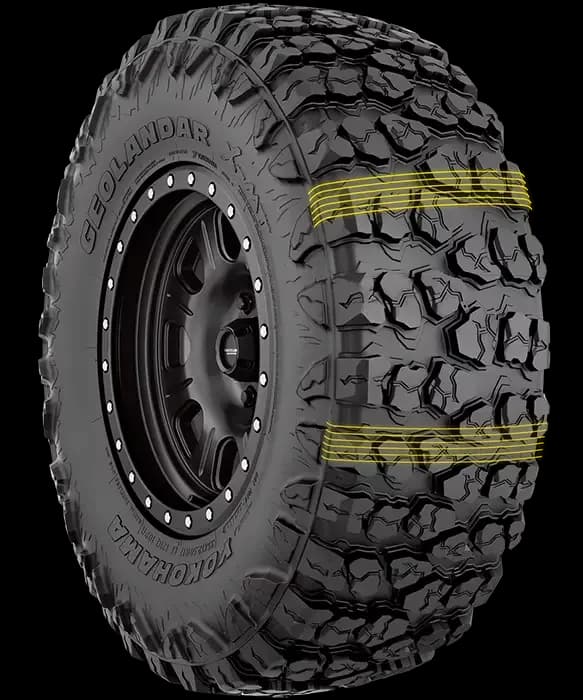

Off-Road Durability

With GEO-SHIELD construction wrapped in a high-density compound, hazardous terrain will never look the same.

OFF-ROAD DURABILITY

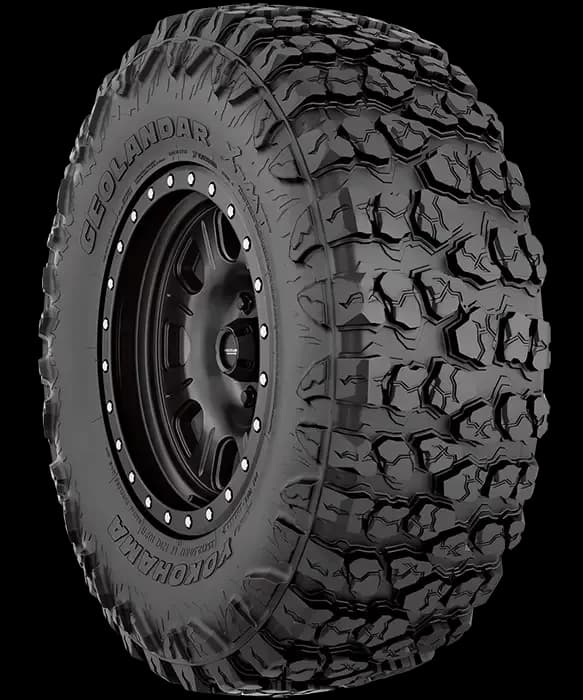

Long Tread Life

The triple-polymer tread compound produces slow, even wear, extending overall performance the life of the tread.

LONG TREAD LIFE

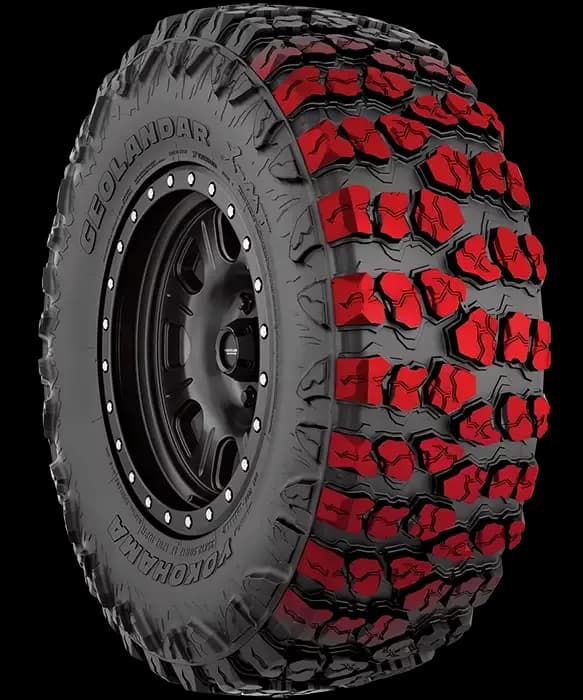

Quieter Ride

Optimized tread pattern reduces pattern noise, providing for a quieter, more comfortable on-road ride home.

QUIETER RIDE
All-Season Tire

ALL-SEASON TIRE
CROSSOVERS/SUVS
TRUCKS

GEOLANDAR X-MT

Engineered for today's hardcore rock-crawlers, the GEOLANDAR X-MT® demands respect on any trail. Constructed with GEO-SHIELD technology, this proud addition to the GEOLANDAR lineup delivers undeniable traction, ruthless performance and the strength required to get you to the top.

SELECT YOUR TIRE SIZE

To view tire specs for your application, select from one of the available sizes below.

GEOLANDAR X-MT SIZE AND SPECS

TIRE SIZE PART# Load I.D UTQG Rating UNIT WEIGHT (LBS) Rim Width (Inches) Inflated Dimensions Tread Width (Inches) Tread Depth (32/in) Loaded dimensions MAX LOAD AT COLD INFLATION PRESSURE (LBS.@PSI) TYPE
MEAS. APPR. Overall Width (inches) Overall Diameter (inches) Static Radius (Inches) Rev / Mile Single
35X12.50R17 121Q 110155501 E 75.0 10.0 8.5 - 11.0 13.0 34.8 10.2 21.0 15.4 598 3,195 @ 65 BW
37X12.50R17 121Q 110155504 D 80.2 10.0 8.5 - 11.0 13.0 36.8 10.2 21.0 16.2 565 3,525 @ 50 BW
37X13.50R17 121Q 110155505 E 84.0 11.0 8.5 - 11.0 13.9 36.7 11.1 21.0 16.2 566 3,195 @ 65 BW
40X13.50R17 121Q 110155509 D 93.5 11.0 8.5 - 11.0 14.2 39.7 11.1 21.0 17.3 523 3,195 @ 50 BW
35X12.50R18 123Q 110155502 E 75.4 10.0 8.5 - 11.0 13.1 34.8 10.2 21.0 15.5 598 3,415 @ 65 BW
37X13.50R18 124Q 110155506 D 84.0 11.0 8.5 - 11.0 14.0 36.7 11.1 21.0 0.0 566 3,525 @ 50 BW
110155517 120.7 0.0 0.0 - 0.0 0.0 0.0 0.0 0.0 0.0 0 0
35X12.50R20 121Q 110155503 E 74.5 10.0 8.5 - 11.0 12.7 34.8 10.2 21.0 15.8 597 3,195 @ 65 BW
38X13.50R20 128Q 110155507 E 86.9 11.0 9.5 - 12.0 13.8 37.7 11.1 21.0 16.9 551 3,970 @ 65 BW
38X15.50R20 125Q 110155508 D 91.0 12.0 11.0 - 14.0 15.2 37.7 12.2 21.0 16.9 551 3,640 @ 50 BW
40X15.50R20 128Q 110155510 D 97.2 12.0 11.0 - 14.0 15.2 39.8 12.2 21.0 17.7 522 3,970 @ 50 BW
38X13.50R22 126Q 110155514 E 86.0 11.0 9.5 - 12.0 13.9 37.7 11.1 21.0 17.1 551 3,750 @ 65 RBL
38X15.50R22 128Q 110155515 E 92.8 12.5 9.5 - 11.5 15.4 37.7 12.2 21.0 17.1 551 3,970 @ 65 RBL
40X15.50R22 128Q 110155511 E 98.5 12.0 11.0 - 14.0 15.1 39.8 12.2 21.0 17.9 522 3,970 @ 65 BW
38X13.50R24 123Q 110155512 E 86.6 11.0 8.5 - 11.0 13.7 37.8 11.1 21.0 17.4 550 3,415 @ 65 BW
40X15.50R24 128Q 110155513 E 98.1 12.5 11.0 - 14.0 15.4 39.9 12.2 21.0 18.2 521 3,970 @ 65 BW
